Mini PC

Model Name

N-BOX-J2

Color

Color

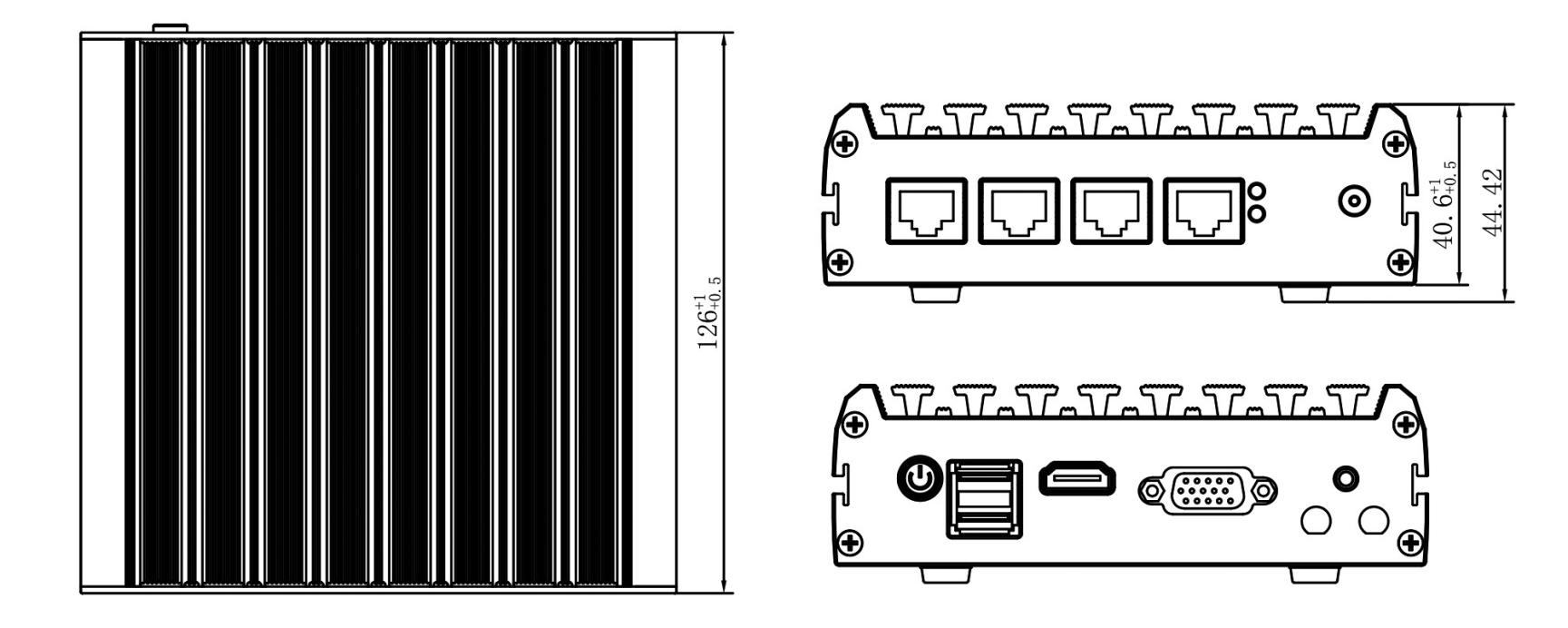

size

134*126*45.3 mm

material

6063

?

?

Motherboard

Chipset

Baytrail-I/D/M serial processor chipset

CPU

Support Baytrail-I/D/M serial CPU?(J1900 J1800)

Ram

Single channel DDR3 1066/1333/1600MHz，max support 8G

Graphics card

Intel HD Graphics

Expansion

1*MINI-PCIE interface for loading wifi, 3G/4G modules (USB signal devices only)

1*MINI-SATA interface for loading SSD solid state drives

1* onboard EMMC 32/64/128G (optional)

Storage

HDD

2.5inch laptop hard disk

SSD

SSD

EMMC

32/64/128G（optional ）

Function

Display output

HDMI

Internet Output

4*Intel I211?Lan Port

USB

1*USB2.0、1*USB3.0

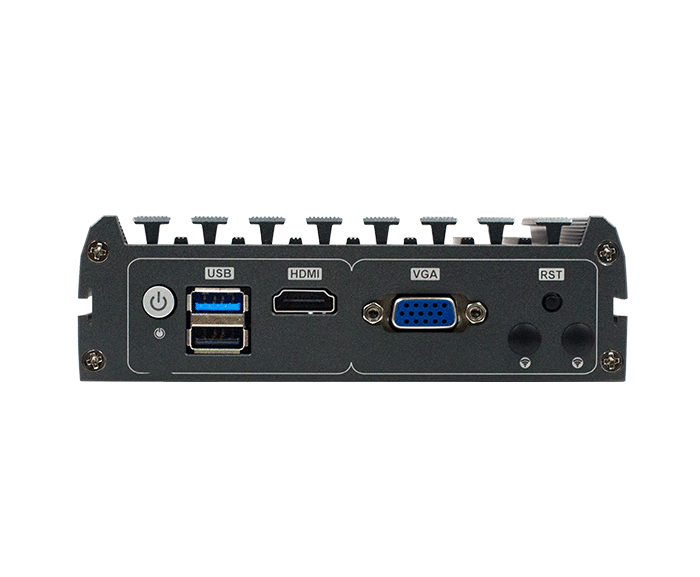

Front I / O interface

1* power switch (with indicator light), 1* reset button, 1*HDMI, 1*RJ45 interface RS232, 2*USB

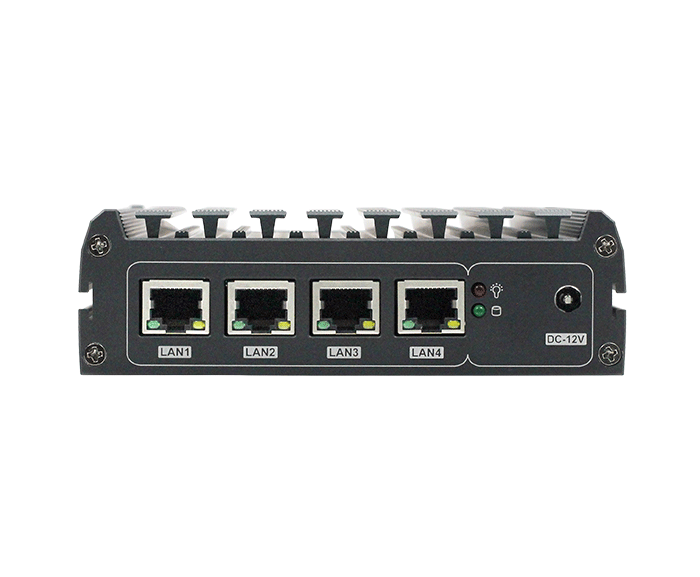

Rear I / O connector

4*Intel I211 high-performance Gigabit LAN, 1* power indicator, 1* hard disk indicator, 1*DC power supply interface

Working temperature

-10~60℃

Operating system

Windows7、Windows 8、Windows8.1 Windows10、linux

Power supply

DC12-19V?power supply

Model

description

CPU?optional

?

BT19NA4L-J1900/E3845

Integrated Celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 Socket?ram ,max to 8gb

Embedded 32G/64/128G EMMC?chipset （optional）

J1900?E3845(quad core）

BT19NA4L-J1800/n2806

Integrated celeron Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

DDR3 SODIMM 204 Socket?ram socket ,max tobe 8gb ram

Embedded 32G/64/128G EMMC?chipset (optional）

J1800（dual core）
